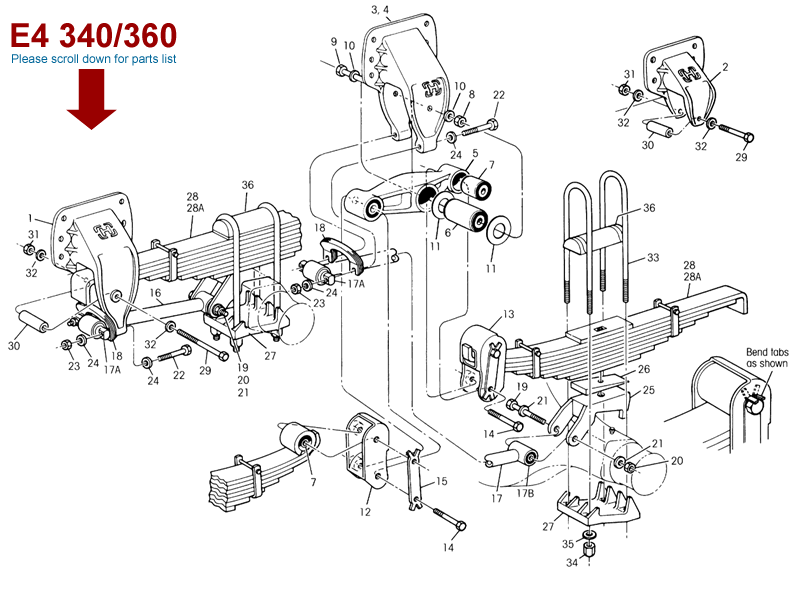

Key No Part No Description Req
1 47432-002 *Front Spring Hanger (Casting No. 47431-000) 2
2 48530-004 **Rear Spring Hanger (Casting No. 48991-000) (Replaces 47436-003) 2
3 47445-001 **Center Hanger & Equalizing Beam Assembly (Includes Key Nos. 4-5, 8-11) 2
4 56833-003 **Center Spring Hanger (Casting No. 47433-000) (Replaces 47434-002) 2
5 47444-001 Equalizing Beam Assembly (Includes Key Nos. 6-7) (Casting No. 47437-000) 2
6 47420-000 Center Bushing 2
7 47421-000 End Bushing & Spring Eye Bushing 8
8 08017-000 Nut Center Bushing 2
9 30550-035 Bolt Center Bushing (Replaces 30550-033) 2
10 22962-006 Washer 4
11 47416-000 Thrust Washer 4
12 47440-000 Shackle L.H.F./R.H.R. (Casting No. 47439-000) 2
13 47442-000 Shackle R.H.F./L.H.R. (Casting No. 47441-000)
14 48728-000 Shackle Bolt 8
15 47459-000 Shackle Bolt Retainer 4
16 48158-001 Shim Type Adjustable Torque Rod Front (Replaces 47401-001 ) 2
17
17A
17B		 48158-002
47691-000
47692-000		 Shim Type Adjustable Torque Rod Rear (Replaces 47401-002)
Torque Rod Bushing Bar Pin Type
Torque Rod Bushing Thru-Bolt Type		 2
2
4
18 49689-000 Shim-Alignment  (Replaces 47457-000)
19 30418-009 Torque Rod Mounting Bolt (Axle) 4
20 29248-000 Torque Rod Mounting Nut (Axle) 4
21 22962-002 Torque Rod Mounting Washer (Axle) 8
22 30587-017 Torque Rod Mounting Bolt (Hanger) 8
23 30585-000 Torque Rod Mounting Nut (Hanger) 8
24 22962-004 Torque Rod Mounting Washer (Hanger) 16
25
47973-000
47974-000		 Spring Seat
(Casting No. 47961-000, Replaces 47716-000)
(Casting No. 47962-000, Replaces 47718-000)		 4
26
47731-000
48053-000
48054-000
48055-000		 Wedge
***No Tab
***2 Tab
***3 Tab
***4 Tab
27
48252-000
48254-000		 Bottom Cap
(Replaces 47450-005 & 47965-000)
(Replaces 47454-000 & 47966-000)
***48255-000, 47451-000 & 47963-000
***48096-000, 47452-000 & 47964-000
***47453-000		 4
28
28A		 50863-000
50865-000		 Spring 34,000 Ib. Capacity  (Replaces 47474-000)
Spring 38,000 Ib. Capacity  (Replaces 47475-000)		 4
29 24531-014 Rebound Bolt  4
30 57988-000 Rebound Bolt Spacer (Replaces 47458-000) 4
31 49846-000 Rebound Bolt Nut (Replaces 46578-000) 4
32 22962-014 Rebound Bolt Washer 8
33 47417-001
47417-003		 7/8"- U Bolt 16 1/4"
7/8"- U Bolt 17 1/2"		 8
34 50765-000 Nut (Replaces 23899-000) 16
35 22962-002 Washer 16
36 48797-000 Top Pad (Replaces 47446-000) 4
38 48158-002 Threaded Tumbuckle Type Adjustable Torque Rod Rear - Optional
(Replaces 47778-002)

Notes

*Spring hangers accommodate frame widths of 33.94" to 34.19". No longer a service item. Contact Hendrickson to upgrade to a conversion.
**Spring hangers accommodate frame widths of 33.94"
***No longer a service item. Contact Hendrickson to upgrade to a
conversion.
