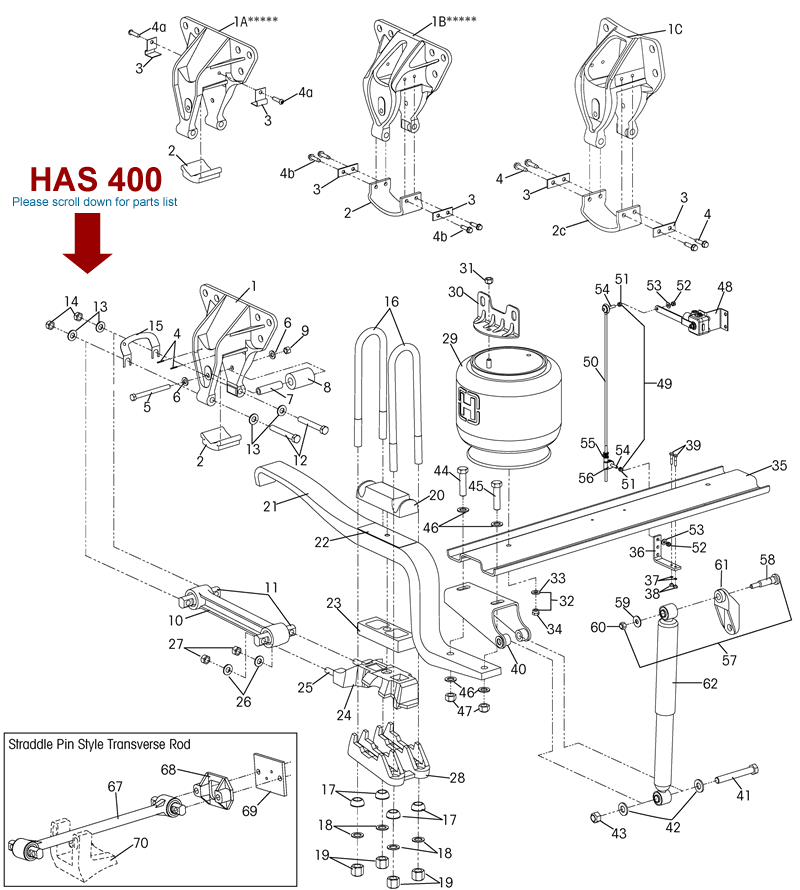

| Key No | Part No | Description | Req |
|---|---|---|---|
| 1 1 1C |
58425-001 58688-001 50753-001 59045-003 |
Front Frame Hanger Assembly (Includes Key Nos. 2-4) HAS-400/402/460 Standard Frame Casting No. 57188-000, Replaces 57190-001(1 A) and 50752-001(1B) HAS-400/402/460 Rein. Frame, Casting No. 57476-000, Replaces 57478-001(1 A) HAS-360, Casting No. 49848-000 or 56666-000 HAS-400/402/460, Standard Frame, Casting No. 59043-000 |
4 |
| 56557-002 56557-004 56557-005 |
Slipper Pad Kit
(Includes Key Nos. 2-4) For Hangers 50753-001 For Hangers 57190-001 For Hangers 58425-001, 58688-001, 59045-003 |
4 | |
| 2 2c |
56929-000 50612-000 |
Slipper Pad For Hangers 58425-001, 58688-001, 59045-003 For Hangers 50753-001 |
4 |
| 3 | 50597-000 |
Retainer For Hangers 50753-001 (1c) |
8 |
| 4 4a 4b |
58287-001 57540-000 57306-000 |
Retainer Lock Pin or Screw 1 " Lock Pin 3/8" Button Head Screw 3/8" Rolok Screw |
8 |
| 49175-013 | Rebound Roller Kit (Includes Key Nos. 5-9) | 1 | |
| 5 | 24531-015 | 1/2"- 13 UNC Rebound Bolt | 4 |
| 6 | 22962-014 | 1/2" Flat Hardened Washer | 8 |
| 7 | 57988-000 | Rebound Bolt Spacer, Replaces 47458-000 | 4 |
| 8 | 57989-000 59598-000 |
Rebound Roller, Replaces 48883-000 HAS 460 (For service only) |
4 |
| 9 | 49846-000 | 1/2"- 13 UNC Locknut | 4 |
| 10 | 48411-006 62007-365 |
Torque Rod Assembly Shim Type Adjustable 143/8" (Includes Key No. 11) HAS-360/400/402 HAS-460, Replaces 50376-001 Rod and 57256-000 Bushing |
4 |
| 11 | 47691-OOL | Torque Rod Bushing | 8 |
| 49176-001 | Torque Rod Fastener Kit (Includes Key Nos. 12-14) | 1 | |
| 12 | 32043-005 | 5/8"- 11 UNC 41/2" Bolt | 8 |
| 13 | 22962-004 | 5/8" Flat Hardened Washer | 16 |
| 14 | 47764-000 | 5/8"- 11 UNC Locknut | 8 |
| 15 | 49689-000 57856-000 |
Torque Rod Shim 1/16 " 1/32 " |
As Req. |
| 48718-050 | U Bolt Fastener Kit (Includes Key Nos. 16-19) | 1 | |
| 16 | 47417- | 7/8"-14 UNF U Bolt (Specify Length) | 8 |
| 17 | 48574-000 | 7/8" Spherical Washer | 16 |
| 18 | 22962-002 | 7/8" Flat Hardened Washer | 16 |
| 19 | 50765-000 57347-000 |
U Bolt Nut 7/8"- 14 UNF Locknut 7/8"- 14 UNF Nylocknut |
16 |
| 20 | 56805-000 | Top Pad | 4 |
| 21 | 56940-000 56931-000 56943-000 56934-000 56946-000 59597-000 |
Main Support Member (Includes Key No. 22) HAS-360 HAS-400L HAS-400 HAS-402L, 460L HAS-402, 460 HAS-460 (For service only) |
4 |
| 22 | 47905-000 | Liner | 4 |
| 23 | 48902-000 48903-000 |
Spring Seat Spacer 1" 1 1/2" |
4 |
| 24 | Spring Seat Assembly (Includes Key Nos. 25-27) See Spring Seat Assembly Chart (Pg. 5)
Left Front |
1 of each | |
| 25 | 50918-000 | 5/8"- 11 UNC Stud | 8 |
| 26 | 22962-004 | 5/8" Flat Hardened Washer | 8 |
| 27 | 47764-000 | 5/8"- 11 UNC Locknut | 8 |
| 28 | 50216-000 50222-000 |
Axle Bottom Cap (Meritor RT40/41/44- 145, RT46/50; RT40-160; RT46-158, Dana 404/405/454; DSP40/41; DSH40/44, DSS40/462/463, D40/46-170) LHF/RHF/LHR/RHR 0-9.5° Pinion Angle HAS-400/402/460 LHR/RHR 10-14° Pinion Angle HAS-400/402/460 |
4 |
| 28 | 50216-000 50217-001 50221-001 50222-000 |
Axle Bottom Cap (Meritor SSHD7 RT46-157) LHF 0-9.5° Pinion Angle RHF 0-9.5° Pinion Angle LHR 10-14° Pinion Angle RHR 10-14° Pinion Angle HAS400/402/460 |
4 |
| 28 | 50216-000 50217-000 50221-000 50222-000 |
Axle Bottom Cap (DanaD402/403/451) LHF 0-9.5° Pinion Angle RHF 0-9.5° Pinion Angle LHR 10-14° Pinion Angle RHR 10-14° Pinion Angle HAS400/402/460 |
4 |
| 28 | 50085-000 50086-000 50095-000 50094-000 |
Axle Bottom Cap (Dana D461) LHF 0-9.5° Pinion Angle RHF 0-9.5° Pinion Angle LHR 10-14° Pinion Angle RHR 10-14° Pinion Angle HAS-402/460 |
4 |
| 29 | 56917-002L 57122-002L |
Air Spring (Includes Key Nos. 30-31) HAS-400L/402L HAS-400/402/460 |
4 |
| 30 | 50804-002 | Air Spring Frame Bracket | 4 |
| 31 | 17700-010 | 1/2"-13 UNC Air Spring Locknut | 4 |
| 32 | 49177-005 | Air Spring Fastener Kit (Includes Key Nos. 33-34) |
1 |
| 33 | 22962-014 | 1/2" Flat Hardened Washer | 4 |
| 34 | 17700-010 | 1/2"-13 UNC Nylocknut | 4 |
| 35 | 57317-57773- |
Cross Channel (Specify Axle Dowel Pin Center) HAS-360/400/402/460 HAS-400/402/460 w/ Rear Inboard Shock |
2 |
| 57430-000 | Control Valve Linkage Bracket Kit (Includes Key Nos. 36-39) | 1 | |
| 36 | 56789-000 | Control Valve Linkage Bracket | 1 |
| 37 | 22962-028 | 1/4" Flat Hardened Washer | 4 |
| 38 | 49983-000 | 1/4"- 20 UNC Locknut | 2 |
| 39 | 56935-002 | 1/4"- 20 UNC 1 " Bolt | 2 |
| 57356-000 49690-002 |
Lower Shock Bracket Assembly (Includes Key Nos. 40-43) HAS-400L/402L |
4 | |
| 40 | 57356-000 49324-002 |
Lower Shock Bracket HAS-400L/402L |
4 |
| 41 | 50764-002 | 3/4"-10 UNC 51/2" Bolt | 4 |
| 42 | 22962-001 | 3/4" Flat Hardened Washer | 8 |
| 43 | 49842-000 | 3/4"- 10 UNC Locknut | 4 |
| 50763-001 50763-003 |
Cross Channel Fastener Kit(Includes Key Nos. 44-47) HAS-360/400 HAS-402/460 |
1 | |
| 44 | 50764-005 50764-003 |
3/4"-10 UNC Bolt HAS-360/400-3" HAS-402/460-31/2" |
4 |
| 45 | 50764-007 50764-005 |
3/4"-10 UNC Bolt HAS-360/400-2 1/2" HAS-402/460-3" |
4 |
| 46 | 22962-001 | 3/4" Flat Hardened Washer | 16 |
| 47 | 49842-000 | 3/4"- 10 UNC Locknut | 8 |
| 48 | 57977-000 | Height Control Valve | 1 |
| 49 | 58994- L | HCV Linkage Assembly (Specify Length) (Includes Key Nos. 50-56) | 1 |
| 50 | *Linkage Rod (Specify Length) | 1 | |
| 51 | *5/16"- 18 UNC Jam Nut | 2 | |
| 52 | *5/16"- 18 UNC Locknut | 2 | |
| 53 | *5/16" Flat Hardened Washer | 2 | |
| 54 | *5/16"- 18 UNC Stud | 2 | |
| 55 | *Linkage Rod Clamp | 1 | |
| 56 | *Adjustable Linkage Rod Joint | 1 | |
| 57 | 57322-001 | Upper Shock Bracket Assembly (Includes Key Nos. 58-61) | 4 |
| 58 | 50368-000 | 1/2" - 3 UNC Serrated Shank Bolt | 4 |
| 59 | 22962-031 | 1/2" Flat Hardened Washer | 4 |
| 60 | 49846-000 | 1/2"- 13 UNC Locknut | 4 |
| 61 | *Upper Shock Bracket | 1 | |
| 62 | 60670-005L 60670-007L 60675-003L 60675-006L 60670-008L |
Shock Absorber
HAS-360/400/402/460 Standard HAS-400/402/460 Standard Inboard Rear High Torque HAS-400/402/460 High Torque Inboard Rear HAS-400L/402L/460L |
|
| 63 | 48914-000 | ****Air Dump Switch (Located In Cab) | 1 |
| 64 | 49193-001 | ****Synchro-Relay Valve | 1 |
| 65 | 48940-000 | ****Air Switch Name Plate (Located In Cab) | 1 |
| 66 | 30272-000 | ****Pressure Protection Valve | 1 |
| 67 | 60218-000 | **Transverse Rod Assembly | 2 |
| 68 | 22186-000 | Transverse Rod Frame Bracket | 2 |
| 69 | 45045-003 | Back up Plate | 2 |
| 70 | ***Transverse Rod Axle Bracket, See 59310-004 for proper axle bracket and Assembly Instructions | 2 |
Notes
| * Item included in assembly only, part not sold separately. |
| ** Transverse Rods (Key No. 67) are mandatory with the HAS Series Suspension regardless of axle spacing and require rubber center beam bushings. See SEU-0213 for mandatory use of transverse rods or bronze center bushings |
| *** Brackets for drive axles are supplied by the axle manufacturer. See Plumbing Diagram on pg. 12. |
| **** These frame hangers are obsolete, although replacement slipper pads and hardware are currently still available. |
