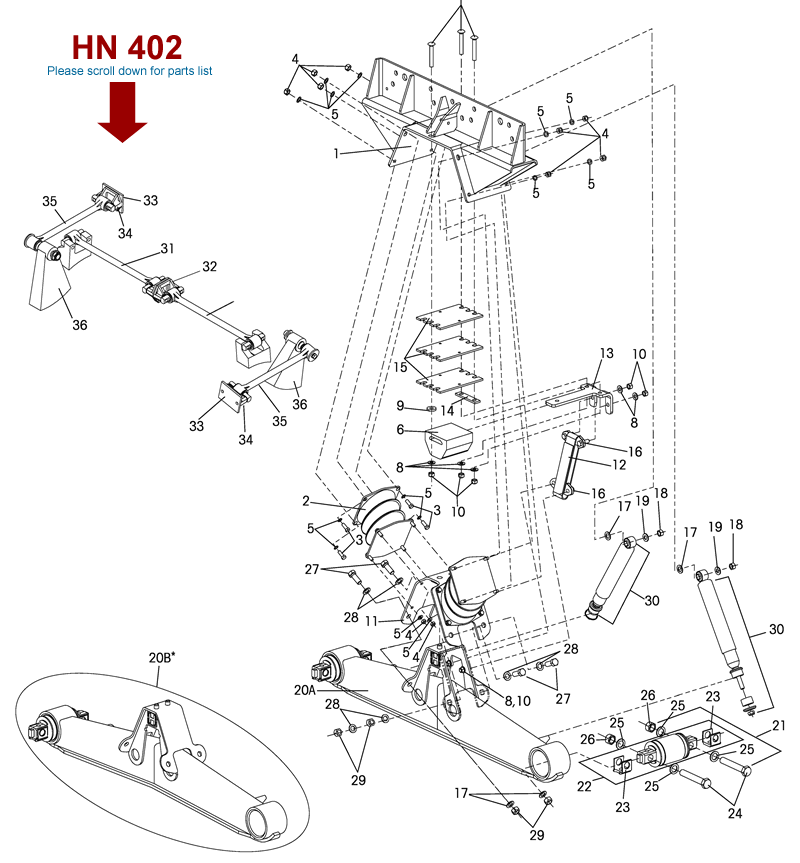

Key No	Part No	Description	Req
1	60686-   58650-	HN-402/462 Saddle Assembly (Includes Key Nos. 2-19) Specify Truck Manufacturer and Saddle Height "A" as shown in the illustration below - 16.5", 17.5", or 18.5" Specify Truck Manufacturer and Saddle Height "A" as shown in the illustration below - 20.25" or 22.50"	2
2	60879-OOOL	Bolster Spring Kit (2 pc)	2
3	25114-011	7/16"- 20-1.25" Bolt	32
4	48949-000	7/16"- 20 UNF-2B Locknut	32
5	22962-027	7/16" Washer	64
6	60314-000	Auxiliary Spring Assembly	2
7	58196-005	1/2"- 13 UNC-2A Round Head Square Neck Bolt 3.25"	6
8	22962-011	1/2" Washer	6
9	22962-020	1/2" Washer	2
10	49846-000	1/2"- 13 UNC-2A Locknut	6
11	58343-001	Saddle Vee Bracket	2
12	57878-003	Rebound Strap	2
13	58948-001	Rebound Strap Mounting Plate	2
14	58949-000	Auxiliary Spring Mounting Plate Shim	2
15	58960-003	Auxiliary Spring Mounting Shim	2
16	60639-000	Anchor Plate Assembly	4
17	22962-001	3/4" Washer	4
18	30585-000	5/8" Locknut	4
19	22962-004	5/8" Washer	4
20A                20B	58494-001 58494-002 58494-005 58494-006 58494-009 58494-010 59973-003   57889-004 57889-005 57889-001 57889-002	Equalizing Beam Assembly HN-462, 54" Non-Shim Type HN-462, 54" Shim Type HN-402/462, 60" Non-Shim Type HN-402/462, 60" Shim Type HN-402/462, 72.5" Non-Shim Type HN-402/462, 72.5" Shim Type HN-522, 54" Shim Type *Equalizing Beam Assembly HN-402, 52" Non-Shim Type HN-402, 52" Shim Type HN-402, 54" Non-Shim Type HN-402, 54" Shim Type	2
21	34013-088L	Bar Pin Bushing Kit Shim Type (Includes Key Nos. 22-26)	4
22		**Bar Pin End Bushing	4
23	50130-000 50131-000	Bar Pin Shim .19/.19 .25/.12	8
24	48941-000	1"- 8 UNC 6" Hexbolt	4
25	22962-008	1" Hardened Washer	8
26	48942-000	1"- 8 UNC Locknut	4
	58440-001	Vee Plate Fastener Kit (Includes Key Nos. 27-29)	1
27	50764-006	3/4"-10UNC-2A Hex Head Bolt	8
28	22962-001	3/4" Washer	16
29	49842-000	3/4"-10UNC-2B Locknut	8
30	60680-003	Shock Absorber	4
31	60218-000	***Torque Rod Assembly	2
32	22186-000	Torque Rod Frame Bracket	2
	42518-	Transverse Rod Assembly Kit (Includes Key Nos. 33-36)	1
33	45045-003	Backup Plate	2
34	22186-000	Transverse Rod Frame Bracket	2
35	60215-000	Transverse Torque Rod	2
36		Transverse Rod Axle Bracket See 59310-004 for proper axle bracket and Assembly Instructions.	2

Notes

NOTE: Brackets for drive axles are supplied by the axle manufacturer.

* The inset shows the difference between the HN-462 and the HN-402 equalizing beam. Notice the bottom flange of the HN-462 is straight and the bottom flange of the HN-402 is formed.

** Item included in assembly only, part not sold separately.

*** Hendrickson's part number is stamped on the rod for identification. Be sure and include suffix number when ordering (this number indicates rod length). Hendrickson 2-piece ULTRA RODS® can be used to create the desired length. See literature number 45745-149.
